Precision Metal Spring Disc Assembly | Machined Metal Parts | Automotive Control Component

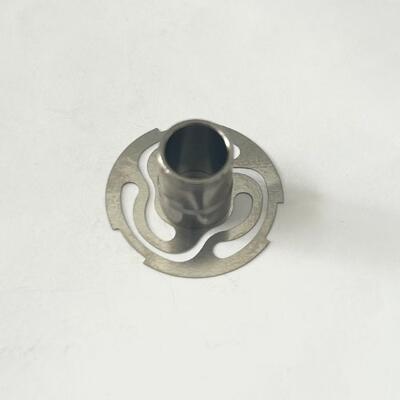

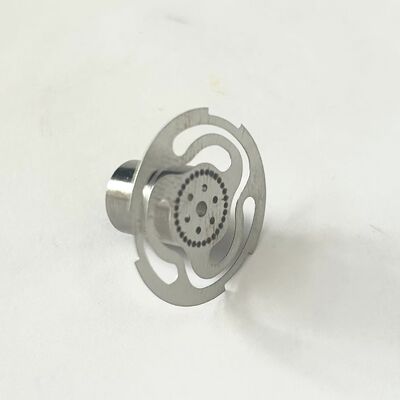

Large Image : Precision Metal Spring Disc Assembly | Machined Metal Parts | Automotive Control Component

Product Details:

Place of Origin:	CN
Brand Name:	GSK
Certification:	TS16949
Model Number:	281532313

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	USD0.40-USD5.50/pcs
Packaging Details:	Neutral
Delivery Time:	30days
Payment Terms:	T/T
Supply Ability:	50000/30days

Contact Now

Detailed Product Description

Highlight:

precision metal spring disc assembly

machined metal automotive component

metal disc control part

Precision Metal Spring Disc Assembly | Machined Metal Parts | Automotive Control Component

Product Description

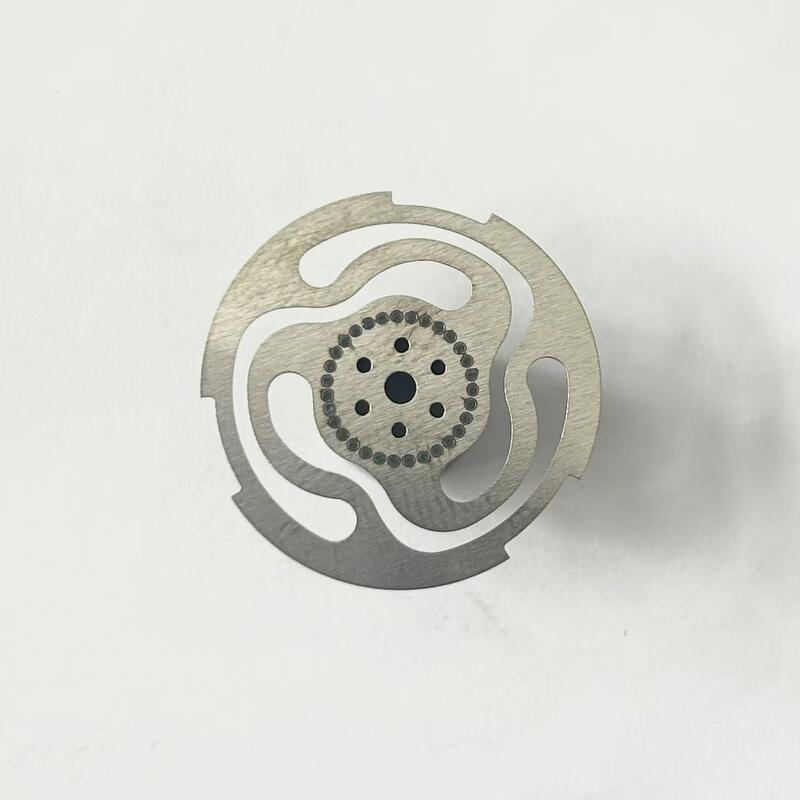

This precision metal spring disc assembly is an ultra-thin (0.1mm) high-performance component engineered for critical buffering and positioning applications in automotive and industrial systems. Crafted from stainless steel/high-carbon steel via precision stamping, its petal-shaped hollow-out design optimizes stress distribution and elastic deformation, ensuring consistent buffering force under dynamic loads. The integrated cylindrical guide enables exact installation alignment, while the 0.1mm ultra-thin profile allows it to fit in tight assembly spaces without compromising structural rigidity. Designed to withstand millions of fatigue cycles, it maintains stable elasticity and dimensional accuracy in environments with temperature fluctuations (-40°C to 150°C) and vibration, making it ideal for automotive engine control modules, hydraulic valve groups, and precision mechanical tooling where reliability and precision are essential.

TECHNICAL PARAMETERS

Category	Details
Product Name	Precision Metal Spring Disc Assembly
Part Number	281532313
Material	Stainless steel / high-carbon steel (inferred for high elasticity & corrosion resistance)
Color	Silver (natural metal finish)
Core Functions	Elastic buffering, precision positioning, vibration damping, stress distribution, tolerance compensation
Design Feature	Ultra-thin stamped structure with hollow-out petal-shaped slots; integrated cylindrical guide for assembly alignment
Application	Automotive engine control systems, hydraulic valve assemblies, precision mechanical tooling, industrial regulators

Advantages

Ultra-Thin High Precision: 0.1mm/0.13mm thickness tolerance ensures consistent performance, meeting the requirements of high-density precision assemblies.

Superior Elastic Fatigue Resistance: High-carbon steel/stainless steel material delivers excellent elasticity and fatigue life, resisting deformation after millions of cycles.

Optimized Stress Distribution: Petal-shaped hollow-out slots reduce stress concentration, enhancing durability and buffering efficiency.

Precision Installation: Integrated cylindrical guide ensures error-free alignment, reducing assembly time and improving fitting consistency.

Corrosion & Temperature Resistance: Stainless steel variant resists oxidation and corrosion, adapting to harsh automotive and industrial environments.

Applications:

Buffers vibration in automotive engine control systems, reducing wear on metal components and improving system reliability.
Provides precision positioning for hydraulic valve assemblies, ensuring stable valve actuation and pressure regulation.
Distributes stress in precision mechanical tooling, preventing localized deformation and extending equipment lifespan.
Compensates for assembly tolerances in high-density mechanical systems, ensuring a secure fit between mating parts.
Dampens dynamic loads in industrial regulators, maintaining stable pressure control and reducing operational noise.
