SB FT Type Auto Water Pump Mechanical Seal Linear Speed ≤15m/S

China SB FT Type Auto Water Pump Mechanical Seal Linear Speed ≤15m/S supplier
SB FT Type Auto Water Pump Mechanical Seal Linear Speed ≤15m/S supplier SB FT Type Auto Water Pump Mechanical Seal Linear Speed ≤15m/S supplier SB FT Type Auto Water Pump Mechanical Seal Linear Speed ≤15m/S supplier

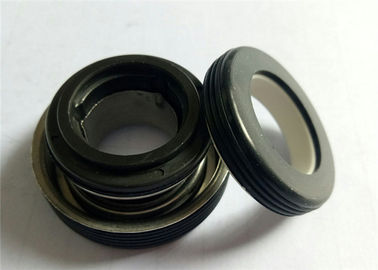

Large Image :  SB FT Type Auto Water Pump Mechanical Seal Linear Speed ≤15m/S

Product Details:

Place of Origin: Qingdao, China
Certification: ISO-9001:2000, ISOTS16949
Model Number: SB/ FT

Payment & Shipping Terms:

Minimum Order Quantity: 500 USD
Packaging Details: neutral packing
Delivery Time: 30 days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Material: Carbon/Ceramic/NBR, Etc Size: Stand Or Customized
Type: WM F, WM FB, WM FBWE, WM, Etc Color: Customized
Style: Pump Seal, Shaft Seal Product Name: Mechanical Seal

 SB type water pumps mechanical seal, SB FT Type Auto Water Pump Seal Mechanical Seal

Product Description

Mechanical Seal Operating Limits
Pressure: ≤0.5Mpa
Linear speed: ≤15m/s
Temperature: -30~200℃

Mechanical Seal Material
•Stationary Ring(Ceramic/SiC/TC)
•Rotary Ring(Carbon/SiC/TC)
•Secondary Seal(NBR/EPDM/VITON)
•Spring & Other Parts(SS304/SS316)

Performance Capabilities


Temperature
-30℃ to +200℃, dependent on the elastomer
Pressure
Up to 6 bar
Speed
Up to 10 m/s
End play/axial float allowance
±0.1mm
size
15,16
brand
LM
Face
Carbon, SiC,TC
Seat
Ceramic, SiC,TC
Bellow
NBR, EPDM, VITON etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Sealing Surface
graphite, Silicon carbide,Tungsten carbide, Alumina ceramics







SB FT Type Auto Water Pump Mechanical Seal Linear Speed ≤15m/S

SB FT Type Auto Water Pump Mechanical Seal Linear Speed ≤15m/S


Model
D2
D3
D7
L1
L3
L4
SB-10
11.0
27.0
23.0
10.5
7.5
4.0
SB-12
14.0
32.0
25.0
10.2
9.0
5.0
SB-16
18.0
41.0
31.0
11.8
10.0
5.0
SB-16A
18.0
41.0
35.0
16.5
9.5
9.0
SB-17
18.5
35.0
30.0
16.0
8.0
6.0
SB-20
21.0
45.0
35.0
11.0
11.5
5.0
SB-25
26.4
52.0
41.3/44
19.0
12.0
8.5/11.0
SB-30
31.0
58.0
48.0
16.5
12.5
8.5



FAQ

1. How to produce ?

we can produce according to seal type and sizes .
if you need some customized parts, we can produce according to drawing and samples.


2How to make the order?

You can send us email or inquiry at alibaba directly.

3. What is your main market?

Our main market is north America, UK, Australia, Middle East , Europe.

4.Do you provide samples ? is it free or extra

We can supply you free samples without extra charges, but express cost is for buyer's account.

5.How is the quality?

Strict control when production, 100% inspection before shipment.

6.Do you provide samples ? is it free or extra ?
Yes,with batch order we could offer the sample for free charge but do not pay the cost of freight.
